Maker LED Flasher

Introduction
This blog details a prototype flasher circuit board for a school Maker community. The board design is built to accommodate through-hole and surface mount components. Featuring two component mounting styles allows the board to serve multiple uses in a school environment.

Dual LED Flasher PCB

Circuit
The circuit in the blog uses a well-worn astable LED flasher design made with discrete components. A transistor pair, wired in a common emitter configuration that drives a total of four LEDs were used. As a DC 9 V battery powers the circuit, more LEDs could be added to the design to interest young Makers.



LED Flasher Circuit

For the feasibility review of the prototype by the Maker community, both circuits were placed on one side of the circuit board. A single switch (surface mount) was used to control power to the through-hole and surface mount sections.

PCB
An ABS enclosure from a local supplier was initially chosen for the prototype. PCB dimensions and the mounting hole locations for the circuit board were extracted from the ABS enclosure.

Components for the flasher circuits were placed on the top layer of the board. The battery connector was relegated to the bottom layer allowing a battery to be placed inside the ABS enclosure. Routing of the board used two copper layers.

Dual LED Flasher Routed PCB

3D Printed Case
With many Makers communities having 3D printers a printed enclosure was created based on the commercially available product

3D Model of Plastic Case

The Fusion 360 and STL files are located at the end of this post.

3D Printed Plastic Case

Making
The image below shows the through-hole portion of the circuit board after being populated and partly soldered by a school student.

Half Populated LED Flasher Board

All the through-hole LEDs and capacitors were taken from salvaged components.

To hold the circuit board in position, round head metal self-tapping screws, 3 mm between crests, 7.5 mm in length were utilised.

The surface mount portion of the board was hand populated as a second step for this blog as can be seen in the image below.

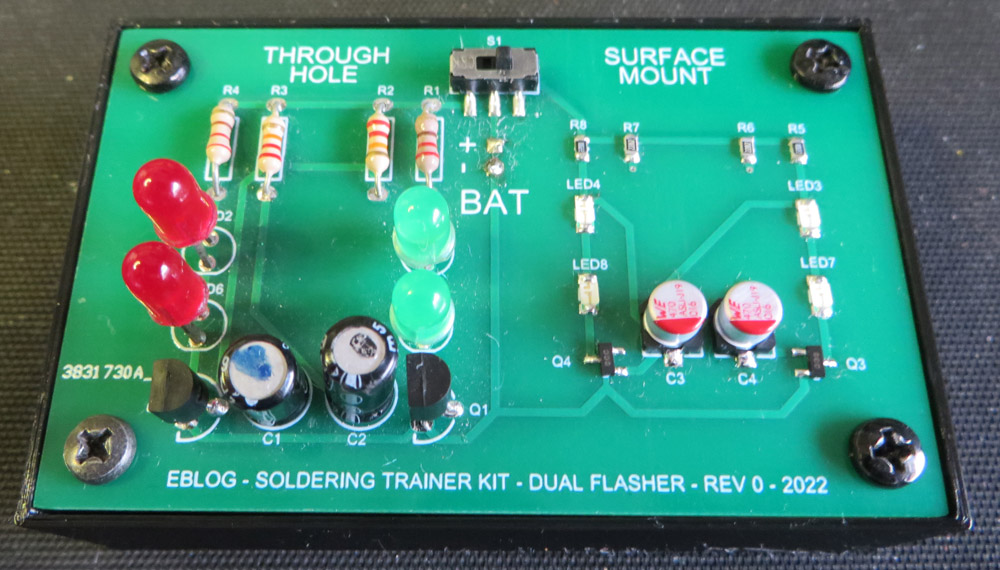

Fully Loaded Flasher PCB in 3D Printed Plastic Case

The video below shows the through hole portion of the flasher board operating.

The second image shows the surface mount section in operation during testing.

Captures from Circuit
For those Maker communities interested in checking the circuit waveforms with a oscilloscope, below are some captures taken from the transistor collector and base connections.

Voltage Measured at Transistor Collector

Voltage Measured at Transistor Base

Summary
The LED flasher detailed in this blog was published as an example for Maker communities. Available for download below is the artwork for the circuit board and the file for a suitable 3D-printed case.

Flasher Schematic

Flasher PCB

Flasher Gerber

Flasher PCB Bill of Materials

3D Case in Fusion 360

3D Case as STL*

* If the plastic case is used, 4 x round head metal self-tapping screws, 3 mm between crests, 7.5 mm long may be required.
